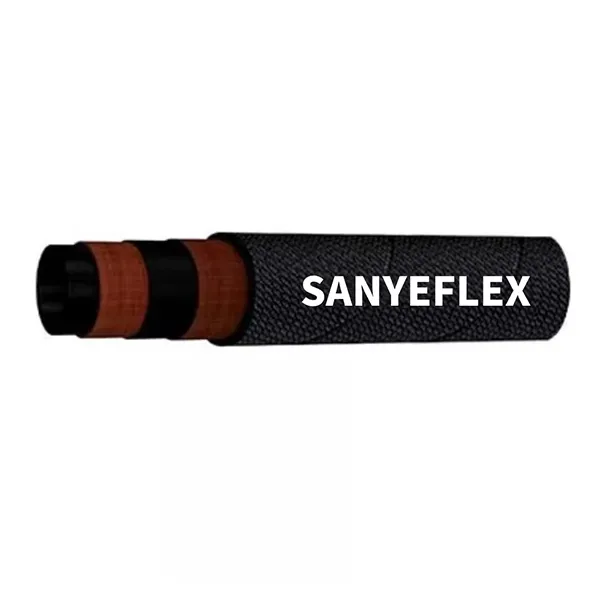

Tube: Black conductive NR, abrasion-resistant
Reinforcement: High tensile textile cords
Cover: Black conductive SBR/NR, abrasion and ozone resistant
Temperature: -30°C + 80°C
Applications: Suitably designed long-lasting heavy-duty hose for use in sand, metal grits and foundry waste with conductive rubber compound to ensure static electricity dissipation abrasion loss of the tube according to ISO 4649: 50+5mm3
Specification
| Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Weight | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m |
| 13 | 1/2 | 26 | 10/12 | 150/180 | 30/36 | 450/540 | 0.63 |
| 16 | 5/8 | 29 | 10/12 | 150/180 | 30/36 | 450/540 | 0.68 |
| 19 | 3/4 | 32 | 10/12 | 150/180 | 30/36 | 450/540 | 0.75 |
| 25 | 1 | 39 | 10/12 | 150/180 | 30/36 | 450/540 | 1.13 |
| 32 | 1 1/4 | 48 | 10/12 | 150/180 | 30/36 | 450/540 | 1.30 |
| 38 | 1 1/2 | 56 | 10/12 | 150/180 | 30/36 | 450/540 | 1.73 |
| 45 | 1 3/4 | 63 | 10/12 | 150/180 | 30/36 | 450/540 | 1.98 |
| 51 | 2 | 69 | 10/12 | 150/180 | 30/36 | 450/540 | 2.20 |
| 64 | 2 1/2 | 82 | 10/12 | 150/180 | 30/36 | 450/540 | 2.70 |
