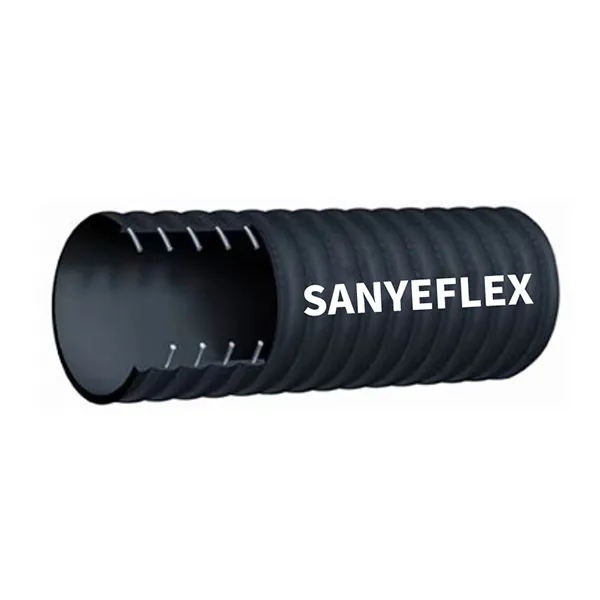

Corrugated Suction & Discharge Hose

Tube: Black blended rubber
Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Black corrugated abrasion and weather resistant synthetic blend

Temperature: -30°C + 80°C(-20°F to +180°F)
Application: water/oil suction and delivery, used in construction industries & agriculture

Inquire Now

Specification

Hose I.D		Hose O.D	Working Pressure		Burst Pressure
mm	inch	mm	bar	psi	bar	psi
25	1	34	10	150	30	450
32	1 1/4	42	10	150	30	450
38	1 1/2	48	10	150	30	450
51	2	62	10	150	30	450
64	2 1/2	74	10	150	30	450
76	3	88	10	150	30	450
89	3 1/2	103	10	150	30	450
102	4	116	10	150	30	450
127	5	142	10	150	30	450
152	6	168	10	150	30	450
203	8	223	10	150	30	450
254	10	280	10	150	30	450

Corrugated Suction Hose

Corrugated suction hose is a flexible hose. It is suitable for general suction and transfer applications where visible product flow is required. Operators can view clogging and material flow to keep equipment and operations running smoothly.

Characteristics

● Abrasion and chemical resistance

●Excellent bending radius

●Impact and extrusion resistance

●Corrugated rigid reinforced spiral

●Smooth inner wall does not restrict material flow

●Economic and flexible

●Light weight for easy transportation

Related Products

Dredging Hose

Reinforcement: Multiple layers of high tensile reinforcing materials with outstanding resistance to fatigue. Fully embedded steel wire coils are incorporated to achieve kink, crush, and local load resistance.

View More
Sandblast Hose

Tube: Black conductive NR, abrasion-resistant
Reinforcement: High tensile textile cords
Cover: Black conductive SBR/NR, abrasion and ozone resistant
Temperature: -30°C + 80°C

View More
LPG Hose

Tube: NBR, black, smooth
Reinforcement: High tensile textile cords
Cover: Orange EPDM/SBR blended, weather and ozone resistant
Temperature: -40℃to~+90℃

View More
Corrugated Suction & Discharge Hose

Tube: Black blended rubber
Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Black corrugated abrasion and weather resistant synthetic blend
Temperature: -30°C + 80°C(-20°F to +180°F)

View More

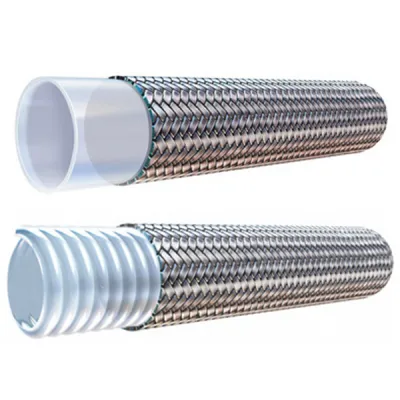

SAE 100 R14 PTFE HOSE
