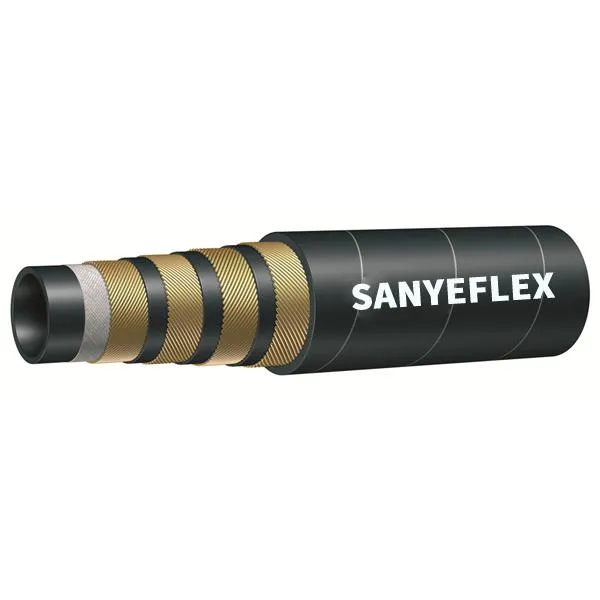

Steel Wire Spiral Hydraulic Hose(Wrapped Cover/ Smooth Cover)

DIN EN856 4SP

Wrapped Cover / Smooth Cover

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: four spirals of high tensile steel wire

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +125℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

Specification

TYPE

DASH

I.D.

Wire OD

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY4SP-10

6

3/8

9.5

17.5

21.4

44.5

6450

180

26000

180

0.78

SY4SP-13

8

1/2

12.7

20.2

24.0

41.5

6000

166

24000

230

0.89

SY4SP-16

10

5/8

15.9

23.8

28.2

35.0

5000

140

20000

250

1.11

SY4SP-19

12

3/4

19.0

28.2

32.2

35.0

5000

140

20000

300

1.59

SY4SP-25

16

1

25.4

35.5

39.7

28.0

4000

112

16000

340

2.02

SY4SP-32

20

1-1/4

31.8

46.0

50.8

21.0

3000

84

12000

460

3.32

SY4SP-38

24

1-1/2

38.1

52.4

57.7

18.5

2700

74

10800

560

3.7

SY4SP-51

32

2

50.8

65.3

69.6

16.5

2400

66

9600

660

5.47

DIN EN856 4SP

Unmatched Pressure Resistance:

DIN EN856 4SP hydraulic hose is engineered to withstand extreme pressure conditions, offering reliable performance even in the most demanding hydraulic systems. With its four high-tensile steel wire spirals, this hose can handle pressures up to 6,000 psi (pounds per square inch), ensuring efficient fluid transfer and power transmission.

Enhanced Durability:

The outer cover of DIN EN856 4SP hydraulic hose is specifically designed to resist abrasion, providing excellent durability and longevity. This feature makes the hose suitable for rugged environments where exposure to rough surfaces, rocks, or debris is common. Invest in DIN EN856 4SP hydraulic hose for reduced downtime and increased productivity.

Flexibility for Easy Installation:

Despite its robust construction, DIN EN856 4SP hydraulic hose maintains flexibility, allowing for easy installation and routing within hydraulic systems. Its flexibility reduces the risk of hose fatigue, enhancing the overall performance and efficiency of your hydraulic system.

Wide Fluid Compatibility:

DIN EN856 4SP hydraulic hose is compatible with a variety of hydraulic fluids, including mineral oils, synthetic oils, biodegradable hydraulic fluids, and more. This versatility ensures seamless integration into different hydraulic systems, providing reliable performance across diverse applications.

Temperature Resilience:

Operating in extreme temperature conditions? DIN EN856 4SP hydraulic hose has you covered. With a temperature range of -40°C to +125°C , this hose maintains its performance and flexibility, ensuring smooth fluid transfer even in challenging environments.

Applications Across Industries:

DIN EN856 4SP hydraulic hose finds extensive application in various industries, including construction, mining, agriculture, and industrial equipment. It is commonly used in hydraulic systems such as excavators, loaders, drilling rigs, and hydraulic power units. Wherever high-pressure hydraulic power is required, DIN EN856 4SP hydraulic hose delivers exceptional performance and reliability.


Related Products

  • DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
  • DIN EN856 4SP

    DIN EN856 4SP

    DIN EN856 4SP hydraulic hose is engineered to withstand extreme pressure conditions, offering reliable performance even in the most demanding hydraulic systems. With its four high-tensile steel wire spirals, this hose can handle pressures up to 6,000 psi (pounds per square inch), ensuring efficient fluid transfer and power transmission.

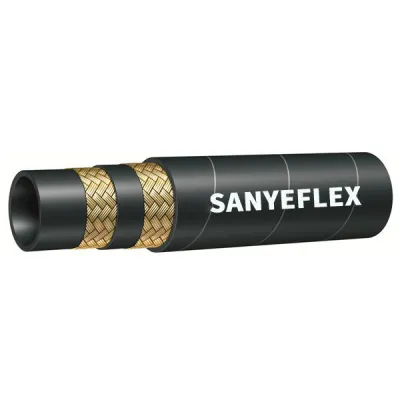

  • DIN EN 857 2SC (Wrapped Cover / Smooth Cover)
