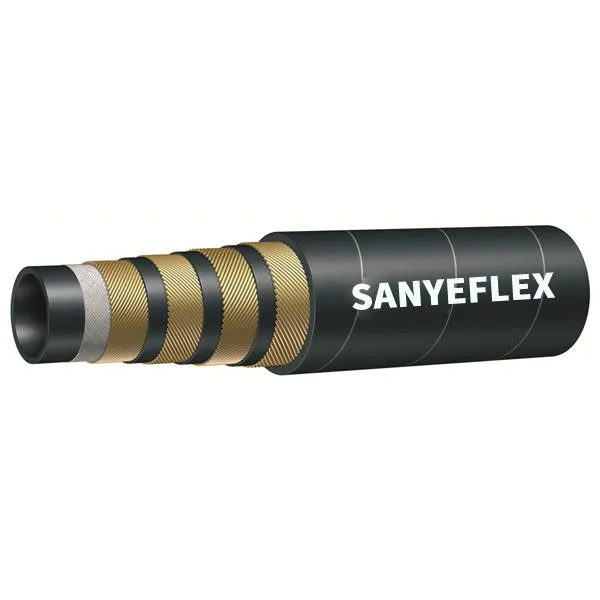

Steel Wire Spiral Hydraulic Hose(Wrapped Cover/ Smooth Cover)

SAE 100 R12

SAE 100 R12

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: four spirals of high tensile steel wire

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +125℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

Specification

TYPE

DASH

I.D.

Wire OD

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY12-10

6

3/8

9.5

17.2

20.3

27.5

4000

110.3

16000

125

0.62

SY12-13

8

1/2

12.7

20.7

23.8

27.5

4000

110.3

16000

180

0.85

SY12-16

10

5/8

15.9

24.6

27.4

27.5

4000

110.3

16000

200

1.29

SY12-19

12

3/4

19.0

27.7

30.7

27.5

4000

110.3

16000

240

1.47

SY12-25

16

1

25.4

34.9

38.0

27.5

4000

110.3

16000

300

2.00

SY12-32

20

1-1/4

31.8

43.9

47.0

20.7

3000

82.7

12000

420

2.86

SY12-38

24

1-1/2

38.1

50.4

53.5

17.2

2500

68.9

10000

500

3.24

SY12-51

32

2

50.8

63.7

66.7

17.2

2500

68.9

10000

630

4.80


SAE 100 R12

SAE 100 R12 steel wire hydraulic hose is suitable for delivering petroleum-based hydraulic oils and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making it have outstanding performance in delivering petroleum-based hydraulic oils. The reinforcement is made from four layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose resistant to extremely high pressure. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight.

Features of SAE 100 R12 hoses:

High pressure rating: SAE 100 R12 hoses are engineered to handle extremely high-pressure hydraulic systems. They have a significantly higher pressure rating compared to standard hydraulic hoses, making them suitable for demanding applications.

Multi-spiral reinforcement: These hoses typically feature a multi-spiral layer of high-tensile steel wire reinforcement. The multi-spiral construction provides exceptional strength and durability, enabling the hose to withstand high-pressure conditions and resist collapsing under extreme loads.

Impulse resistance: SAE 100 R12 hoses are designed to exhibit excellent impulse resistance, meaning they can withstand repeated pressure surges or pulsations without compromising their performance or integrity.

Abrasion and weather resistance: These hoses often come with a synthetic rubber cover that provides good resistance to abrasion and weathering. This protective cover enhances the hose's durability, allowing it to withstand harsh operating conditions and extend its service life.

Applications of SAE 100 R12 hoses:

Heavy machinery and equipment: SAE 100 R12 hoses are commonly used in heavy-duty machinery and equipment found in industries such as construction, mining, and agriculture. They are suitable for applications involving hydraulic systems, such as excavators, bulldozers, loaders, and hydraulic cranes.

Oil and gas industry: These hoses are also utilized in the oil and gas sector, where hydraulic power is required for various operations. They can be found in drilling rigs, well servicing equipment, hydraulic fracturing systems, and other applications where high-pressure hydraulic fluid transmission is necessary.

Industrial machinery: SAE 100 R12 hoses are suitable for use in industrial machinery, including hydraulic presses, machine tools, and manufacturing equipment. They enable the transmission of hydraulic fluid to control different components and ensure efficient and reliable operation.

Mobile equipment: SAE 100 R12 hoses are used in mobile equipment such as off-road vehicles, agricultural machinery, and material handling equipment. They provide the necessary hydraulic power for functions like steering, lifting, and braking.

SAE 100 R12
