Steel Wire Braided Hydraulic Hose(Wrapped Cover/Smooth Cover)

SAE 100R1/DIN EN853 1SN

Wrapped Cover / Smooth Cover

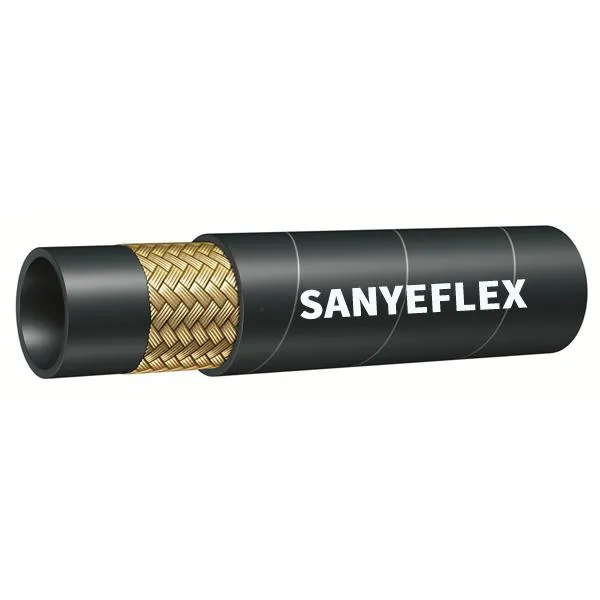

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: one high tensile steel wire braid

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +125℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.


Specification

TYPE

DASH

I.D.

W.D.

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY1SN-5

3

3/16

4.8

9.5

11.8

32.0

4640

128.0

18560

90

0.19

SY1SN-6

4

1/4

6.4

11.1

13.4

32.0

4640

128.0

18560

100

0.21

SY1SN-8

5

5/16

7.9

12.7

15.0

28.0

4060

112.0

16240

115

0.24

SY1SN-10

6

3/8

9.5

15.1

17.4

25.6

3712

102.4

14848

130

0.33

SY1SN-13

8

1/2

12.7

18.3

20.6

22.4

3248

89.6

12992

180

0.41

SY1SN-16

10

5/8

15.9

21.4

23.7

21.0

3045

84.0

12180

200

0.45

SY1SN-19

12

3/4

19.0

25.4

27.7

14.4

2088

57.6

8352

240

0.58

SY1SN-25

16

1

25.4

33.3

35.6

11.2

1624

44.8

6496

300

0.88

SY1SN-32

20

1-1/4

31.8

40.5

43.5

6.0

870

24.0

3480

420

1.23

SY1SN-38

24

1-1/2

38.1

46.8

50.6

5.0

725

20.0

2900

500

1.51

SY1SN-51

32

2

50.8

60.2

64.0

4.0

580

16.0

2320

630

1.97


SAE 100R1 Hydraulic Hose

SAE 100 R1 hydraulic hose is suitable for hydraulic lines and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

The SAE 100R1 hydraulic hose is commonly used in a variety of applications where hydraulic power is required.

Product Description

Structure: it is composed of three parts: tube, reinforcement and cover.

Tube: high quality oil resistant synthetic rubber, making the hose work well in delivering oils.

Reinforcement: one layer of high tensile braided steel wire, making the hose work well in high pressure environment.

Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.

Working temperature: -40 °C to +125 °C.

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

Some of its typical uses include:

Industrial machinery: SAE 100R1 hoses are often utilized in industrial machinery, such as hydraulic presses, machine tools, and conveyor systems. These hoses help transmit hydraulic fluid to operate various components and ensure smooth and reliable operation.

Construction equipment: Hydraulic systems are extensively used in construction machinery like excavators, loaders, and cranes. SAE 100R1 hoses provide the necessary hydraulic power to control the movement of different parts, such as booms, buckets, and outriggers.

Agricultural machinery: Tractors, harvesters, and other agricultural equipment heavily rely on hydraulic systems for functions like lifting, steering, and operating attachments. SAE 100R1 hoses are suitable for transmitting hydraulic fluid in these applications.

Automotive industry: SAE 100R1 hoses can also be found in the automotive sector, where they are used for power steering systems, braking systems, and suspension systems. These hoses facilitate the transfer of hydraulic fluid to ensure proper operation and control of these systems.
