Hydraulic Hose for Special Use (Wrapped Cover/Smooth Cover)

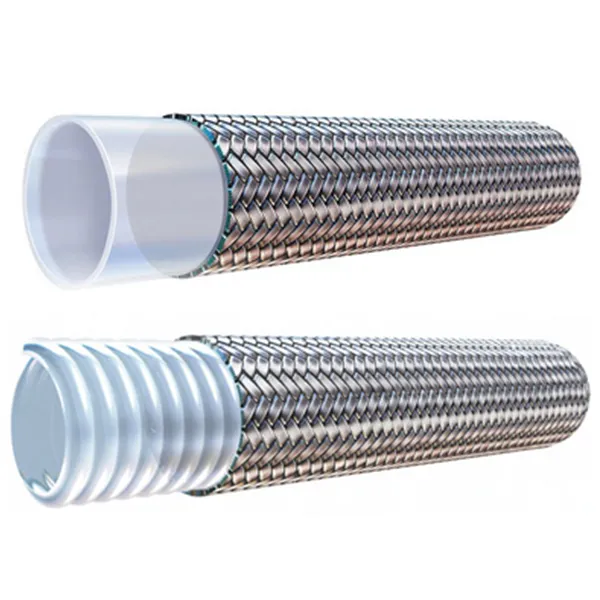

SAE 100 R14 PTFE HOSE

INNER TUBE: high temperature resistant and chemical corrosion resistant PTFE material

COVER: stainless steel wire braid

TEMPERATURE RANGE: -60℃ to +260℃

Specification

TYPE

DASH

I.D.

O.D.

W.T.

W.P.

B.P.

Min B.R.


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

SYB-8614-6

4

1/4

4.65-5.16

7.32-8.43

0.89

299

4330

897

13000

71

SYB-8614-8

5

5/16

5.97-6.81

8.26-9.42

0.76

276

4000

828

12000

76

SYB-8614-10

6

3/8

7.54-8.38

10.36-11.63

0.76

230

3330

690

10000

127

SYB-8614-13

8

1/2

9.93-10.64

12.78-14.10

0.89

183

2660

552

8000

133

SYB-8614-16

10

5/8

12.57-13.34

12.75~16.76

0.76

161

2330

483

7000

177

SYB-8614-19

12

3/4

15.24-16.51

18.62-20.14

0.76

138

2000

414

6000

203

SYB-8614-25

1

1

21.46-22.99

24.64-26.95

0.89

103

1500

310

4500

241

SYB-8614-32

20

1-1/4

27.80-29.40

31.90-33.50

1.00

41

600

172

2500

406
