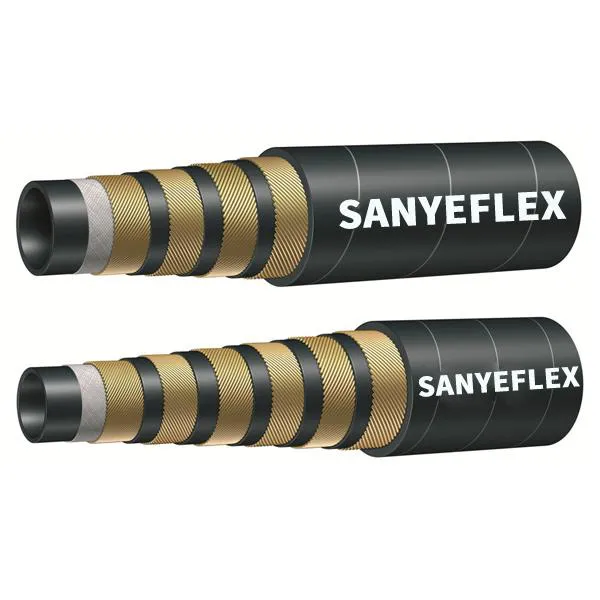

Steel Wire Spiral Hydraulic Hose(Wrapped Cover/ Smooth Cover)

SAE 100 R13

Wrapped cover/ Smooth cover

Inner tube: Excellent oil resistant synthetic rubber.

Reinforcement: 4 or 6 Layers of high tensile copper-coated steel wire spiral.

Cover: Oil, abrasion and anti-aging synthetic rubber.

Standard: SAE100R13, GB/T10544-2013 Standard.

Temperature range: -40℃ to +125℃.

Application: For the delivery of petroleum based hydraulic fluids.


Specification

TYPE

DASH

I.D.

Wire OD

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY13-19

12

3/4

19.0

28.4

32.1

34.5

5000

138.0

20000

240

1.68

SY13-25

16

1

25.4

35.2

38.7

34.5

5000

138.0

20000

300

2.24

SY13-32

20

1-1/4

31.8

41.9

50.2

34.5

5000

138.0

20000

420

3.90

SY13-38

24

1-1/2

38.1

48.8

57.7

34.5

5000

138.0

20000

500

5.07

SY13-51

32

2

50.8

63.2

71.5

34.5

5000

138.0

20000

630

7.91

SAE 100 R13 Steel Wire Spiral Hydraulic Hose

SAE 100 R13 steel wire spiral hydraulic hose is suitable for transporting petroleum-based hydraulic oil and is also mainly used in high-pressure service. It consists of three parts: tube, reinforcement and cover. The tube is made of black oil-resistant synthetic rubber, which gives it excellent performance in transporting petroleum-based hydraulic fluids. The reinforcement is made of multiple layers of high-tensile, high-strength thick spiral steel wire in alternating directions, giving the hose an extremely high working pressure. In addition, wire-wound hydraulic hoses can withstand higher working pressures than wire-reinforced hydraulic hoses. Therefore, the hose has outstanding performance in ultra-high pressure environment. The cover is made of high quality black synthetic rubber, which makes the hose resistant to abrasion, corrosion, cutting, weather, ozone, aging and sunlight.

Features

High Pressure Rating: SAE 100R13 hose is rated for working pressures of up to 5,000 psi, making it suitable for use in high-pressure hydraulic systems.

High-Impulse Applications: This hose is designed to withstand high impulse pressure and cyclic pressure stress, making it ideal for use in high-impact applications.

Multilayer Construction: SAE 100R13 hose features a multilayer construction, with four or six layers of spirally-wrapped steel wire reinforcement, which provides superior strength and flexibility.

Abrasion and Weather Resistance: The outer cover of the hose is made from abrasion-resistant synthetic rubber, which protects the hose from damage and extends its service life. It is also resistant to weather and ozone, ensuring that it can be used in a variety of environments.

Versatile Applications: This hose is suitable for use in a wide range of hydraulic applications, including mining, construction, and agricultural machinery.

SAE 100 R13
