Mining

Mining Equipment Applications

HYDRAULIC HOSE - Mining Equipment Applications

Typical Machines:

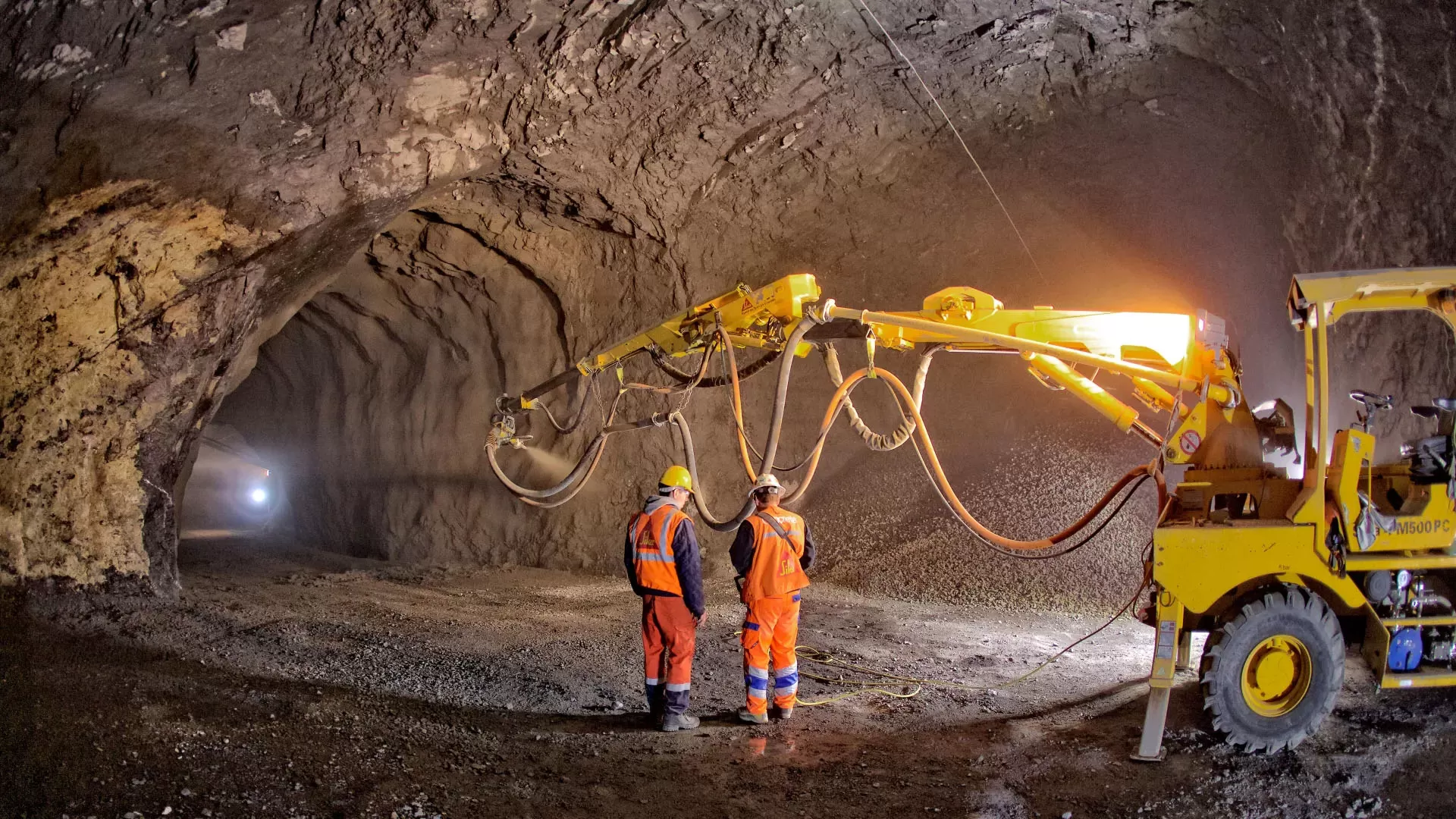

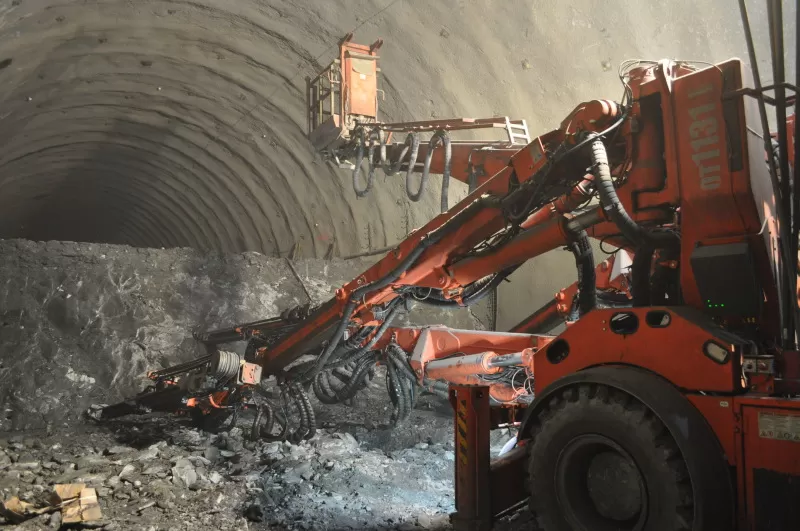

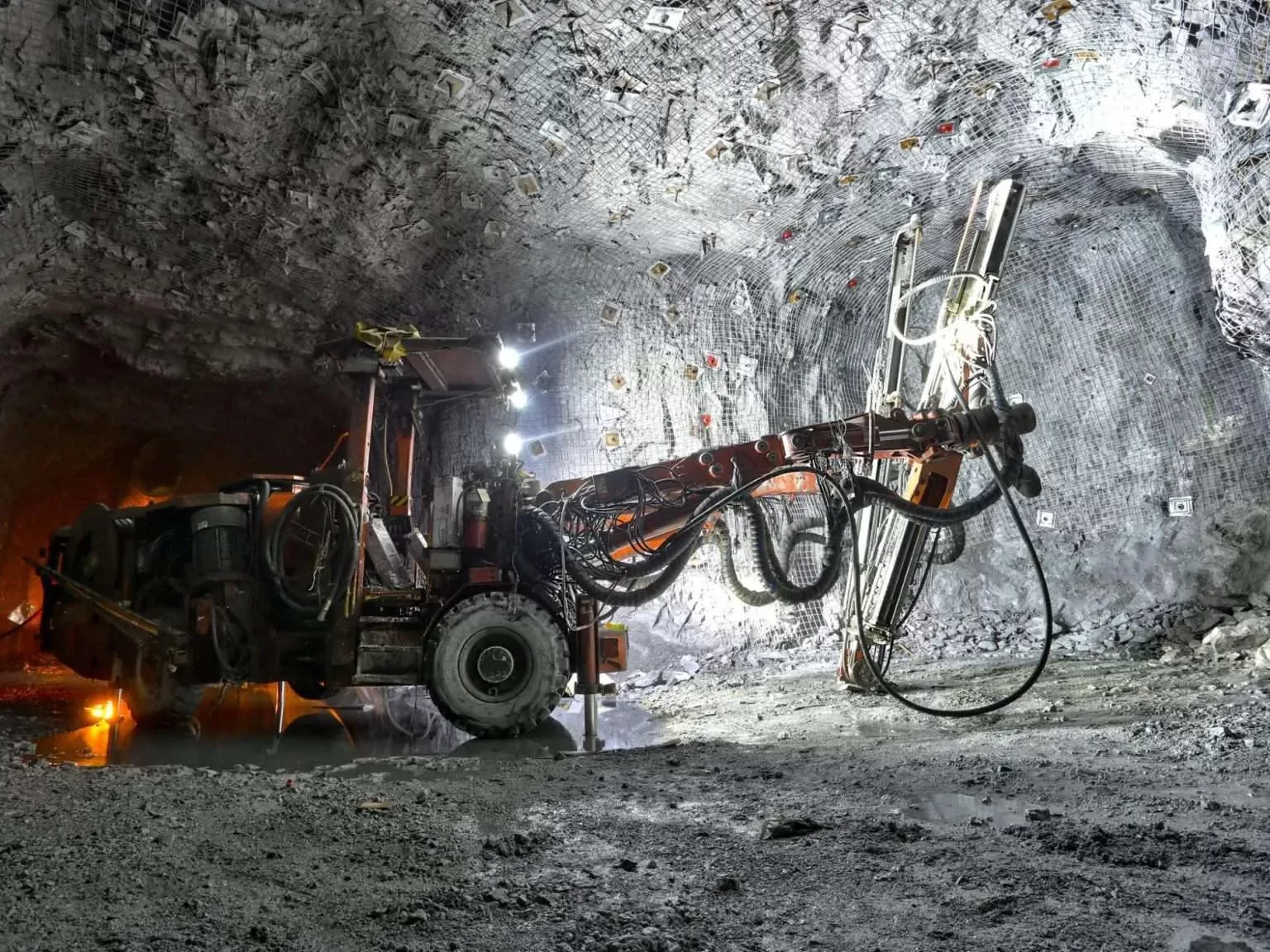

Underground mining trucks, hydraulic drilling rigs, loaders, crushers, hydraulic jumbos




Specification

Key Working Conditions:

Constant high pressure

High abrasion from rock dust

Oil-water contact

Harsh environments (mud, vibration, temperature)



Recommended Hose Models:

Hose Model

Application Point

Features

R15

Main hydraulic power lines

6-spiral layers, ultra high pressure (up to 70 MPa), for harsh vibration and impact

4SH / 4SP

Boom cylinders, crusher hydraulic circuits

4-spiral layers, abrasion-resistant cover, suitable for continuous load

2SC

Steering systems, auxiliary circuits

High braid density (98%), flexible, suitable for narrow routing

Wrapped Plastic-Coated Hose

Exposed connections in wet/muddy conditions

  Corrosion-resistant, anti-fouling, recyclable coating


  • DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

    DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: two high tensile steel wire braids
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -40℃ to +125℃
    APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
  • DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: four spirals of high tensile steel wire
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -40℃ to +125℃
    APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc
  • SAE 100 R15  (Wrapped Cover / Smooth Cover)

    SAE 100 R15 (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: four or six spirals of high tensile steel wire
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -40℃ to +125℃
