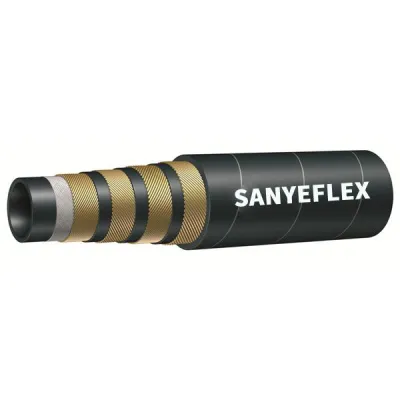

Steel Wire Spiral Hydraulic Hose(Wrapped Cover/ Smooth Cover)

DIN EN856 4SH (Wrapped Cover / Smooth Cover)

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: four spirals of high tensile steel wire

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +125℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

Specification

TYPE

DASH

I.D.

Wire OD

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY4SH-19

12

3/4

19.0

28.4

32

42.0

6000

168

24000

280

1.61

SY4SH-25

16

1

25.4

35.2

38.6

38.0

5500

152

22000

340

2.00

SY4SH-32

20

1-1/4

31.8

41.9

45.8

32.5

4700

130

18800

460

2.46

SY4SH-38

24

1-1/2

38.1

48.8

53.3

29.0

4200

116

16800

560

3.35

SY4SH-51

32

2

50.8

63.2

68.1

25.0

3600

100

14400

700

4.98


Related Products

  • DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
  • DIN EN856 4SP

    DIN EN856 4SP

    DIN EN856 4SP hydraulic hose is engineered to withstand extreme pressure conditions, offering reliable performance even in the most demanding hydraulic systems. With its four high-tensile steel wire spirals, this hose can handle pressures up to 6,000 psi (pounds per square inch), ensuring efficient fluid transfer and power transmission.

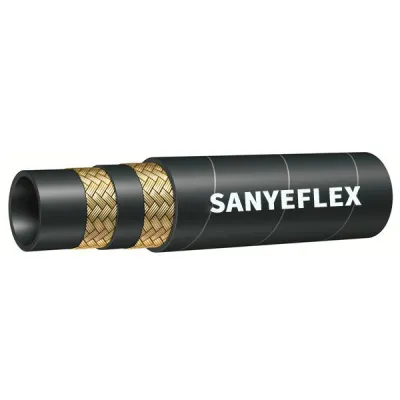

  • SAE 100R2/DIN EN853 2SN

    SAE 100R2/DIN EN853 2SN

    SAE 100R2 Hydraulic Hose is made of oil-resistant tubing and is suitable for transporting petroleum-based hydraulic fluids. In addition, it can transport oil without excessive heat and leakage. It is mainly used for some mobile equipment, such as agricultural tractors, dump trucks and in-plant hydraulic equipment.

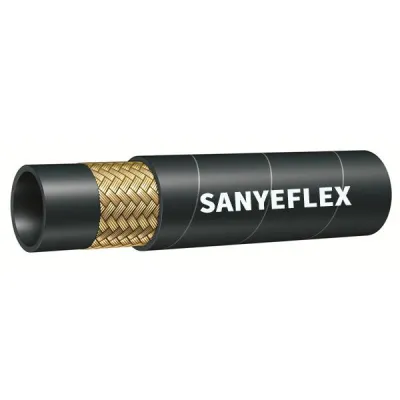

  • DIN EN 857 1SC (Wrapped Cover / Smooth Cover)
