Firber Braided Hydraulic Hose (Wrapped Cover/ Smooth Cover)

SAE 100R7

Smooth cover

Inner tube: Nylon

Reinforcement: 1 or 2 Layers of synthetic fiber braid.

Cover: Black or other color polyurethane.

Standard: SAEJ517 100RAT Standard.

Temperature range: -40℃ to +100℃

Application: Suitable for transfer petroleum and water based hydraulic oil, which could be used as lubrication lines and blowout preventer control line etc. Widely application on hydraulic lifts, agricultural machines and construction machines.


Specification

TYPE

DASH

I.D.

O.D.

W.P.

B.P.

Min B.R.

Weight



Inch

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY7-3

3

1/8

3.3

8.5

17.2

2500

68.9

10000

13

0.037

SY7-5

4

3/16

4.8

10.8

20.7

3000

82.7

12000

20

0.068

SY7-6

5

1/4

6.4

13.0

20.7

3000

82.7

12000

33

0.085

SY7-8

6

5/16

7.9

15.1

17.2

2500

68.9

10000

46

0.103

SY7-10

8

3/8

9.5

17.0

15.5

2250

62.1

9000

51

0.141

SY7-13

10

1/2

12.7

20.7

13.8

2000

55.2

8000

76

0.210

SY7-19

12

3/4

19.0

27.1

8.6

1250

34.5

5000

127

0.287

SY7-25

16

1

25.4

34.0

6.9

1000

27.6

4000

203

0.542

Thermoplastic Hydraulic Hose

A thermoplastic hydraulic hose is a type of hose used in hydraulic systems that is made from thermoplastic materials. These hoses are designed to carry hydraulic fluids, such as oil, at high pressures and temperatures.

Thermoplastic hoses have several advantages over traditional rubber hoses, including:

Lightweight: Thermoplastic hoses are typically lighter than their rubber counterparts, making them easier to handle and install.

High Pressure Capability: They can withstand high-pressure applications, making them suitable for heavy-duty hydraulic systems.

Flexibility: Thermoplastic hoses are highly flexible, which allows them to bend and adapt to the shape of the hydraulic system, making installation easier.

Chemical Resistance: They are resistant to many chemicals and oils, which can extend their lifespan in harsh environments.

Abrasion Resistance: Thermoplastic hoses can resist abrasion and wear, ensuring they maintain their integrity over time.

Low Permeability: These hoses have low permeability, which means they are less likely to allow hydraulic fluids to leak through the hose walls.

Wide Temperature Range: They can operate effectively in a broad temperature range, from cold to hot conditions.

Quick Assembly: Thermoplastic hoses often use reusable fittings and can be easily assembled on-site, reducing downtime during maintenance and repairs.

UV Resistance: Some thermoplastic hoses are UV-resistant, making them suitable for outdoor applications.

Customization: They can be manufactured in various lengths and diameters to suit specific hydraulic system requirements.


Thermoplastic hydraulic hoses are commonly used in various industries, including construction, agriculture, manufacturing, and automotive, where hydraulic systems are crucial for powering machinery and equipment. They offer a reliable and cost-effective solution for hydraulic fluid transmission while providing durability and flexibility in demanding applications.


SAE 100R7

SAE 100R7 Hydraulic Hose

The SAE 100R7 hydraulic hose is a type of hose commonly used in hydraulic systems. It is designed to withstand high pressure and transmit hydraulic fluid between various components in machinery and equipment. Here are some key features and specifications of the SAE 100R7 hydraulic hose:

Construction: The hose is typically constructed with a thermoplastic inner tube, reinforced with one or multiple layers of synthetic fiber braids, and covered with a thermoplastic outer cover.

Flexibility: The thermoplastic materials used in the construction of the hose provide excellent flexibility, allowing it to bend and route easily, even in tight spaces. This flexibility makes it suitable for a wide range of applications.

High Pressure Rating: The SAE 100R7 hydraulic hose is designed to handle medium to high operating pressures, typically ranging from around 1000 to 3000 psi (pounds per square inch). This makes it suitable for a variety of hydraulic applications where pressure requirements are relatively high.

Compatibility: The hose is compatible with various hydraulic fluids, including petroleum-based oils, synthetic oils, and water-based hydraulic fluids. However, it is important to refer to the manufacturer's specifications and guidelines to ensure proper compatibility with specific fluids and operating conditions.

Temperature Range: The SAE 100R7 hydraulic hose can typically operate within a temperature range of -40°C to +100°C (-40°F to +212°F). Again, it is essential to consult the manufacturer's recommendations for the specific temperature limits of the hose.

Applications: The SAE 100R7 hydraulic hose is commonly used in a variety of hydraulic systems, including mobile equipment, agricultural machinery, material handling equipment, and industrial machinery. It is suitable for applications such as power steering, lubrication lines, hydraulic lifts, and more.

Size Range: The hose is available in various sizes, typically ranging from 1/8 inch to 1 inch in diameter. The size selection depends on the specific hydraulic system requirements and the flow rates involved.

When using the SAE 100R7 hydraulic hose, it is essential to follow the manufacturer's guidelines for installation, maintenance, and safety considerations. Proper assembly, routing, and regular inspection of the hose are crucial to ensure safe and efficient hydraulic system operation.


Related Products

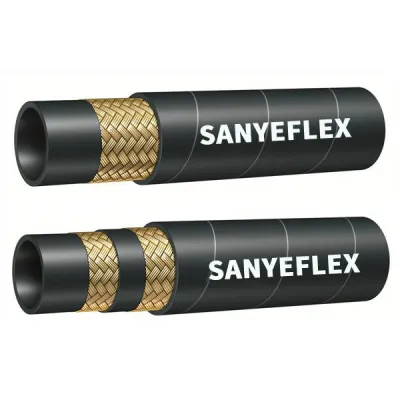

  • SAE 100R6  (Wrapped Cover / Smooth Cover)

    SAE 100R6 (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: one high tensile fibre braid
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -40℃ to +100℃
  • SAE 100R3  (Wrapped Cover / Smooth Cover)

    SAE 100R3 (Wrapped Cover / Smooth Cover)

    SAE 100R3 Medium Pressure Hydraulic Hose is ideal for medium pressure fuel and oil lines as well as return and suction hoses for hydraulic systems. Two layers of braided fabric protect the inner hose from damage to the outer cover.

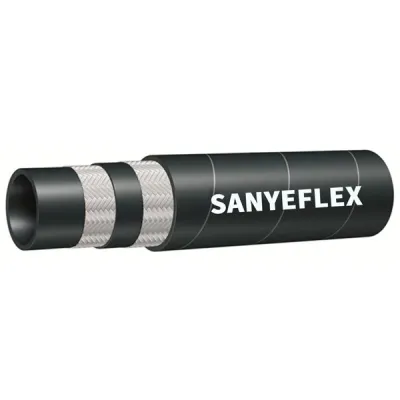

  • SAE 100 R15  (Wrapped Cover / Smooth Cover)

    SAE 100 R15 (Wrapped Cover / Smooth Cover)

    SAE 100 R15 hydraulic hose is built to handle extreme pressures and heavy-duty applications. Its construction consists of multiple layers of high-tensile steel wire spirals, ensuring exceptional strength and resistance to external forces.

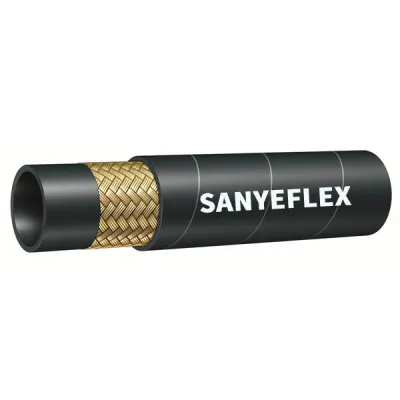

  • SAE 100R5

    SAE 100R5

    SAE 100R5 is a type of hydraulic hose specification defined by the Society of Automotive Engineers (SAE). It is a single wire braid reinforced hose with a textile cover and is designed for use in medium pressure hydraulic systems, air, and oil applications.

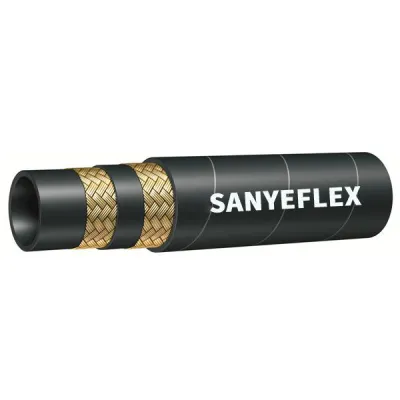

  • SAE 100 R17 (Wrapped Cover / Smooth Cover)

    SAE 100 R17 (Wrapped Cover / Smooth Cover)

    SAE 100 R17 hydraulic hose is suitable for some equipment whose installation space is compact and narrow, because it has smaller bending radius and outside diameter. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering oils.
  • SAE 100 R16

    SAE 100 R16

    SAE 100 R16 steel wire reinforced hydraulic hose is suitable for connecting hydraulic equipment in narrow installation spaces as it has a small bending radius and outside diameter.
