Firber Braided Hydraulic Hose (Wrapped Cover/ Smooth Cover)
Home / Products Center / SAE/DIN Standard Hydraulic Hose / Firber Braided Hydraulic Hose (Wrapped Cover/ Smooth Cover) / SAE 100R3 (Wrapped Cover / Smooth Cover)

  • SAE 100R3 (Wrapped Cover / Smooth Cover)

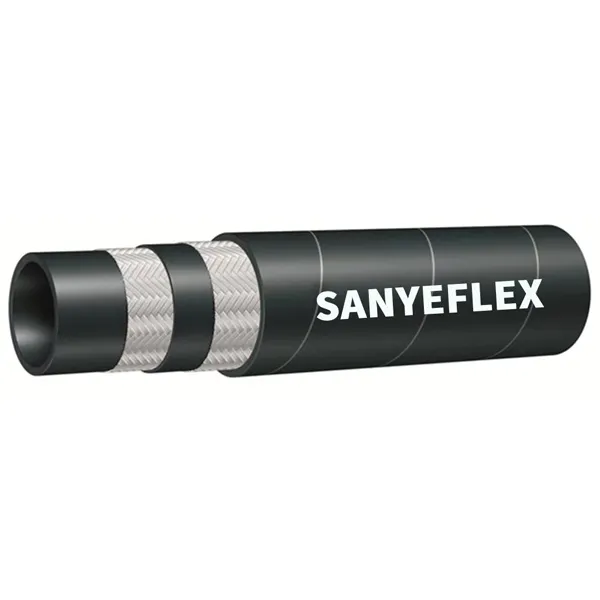

SAE 100R3 (Wrapped Cover / Smooth Cover)

SAE 100R3 (Wrapped Cover / Smooth Cover)

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: double high tensile fibre braids

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +100℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

Inquire Now Next Product

Specification

TYPE

DASH

I.D.

O.D.

W.P.

B.P.

Min B.R.

Weight



Inch

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY3-4

3

3/16

4.8

12.7

10.5

1520

42.0

6500

75

0.16

SY3-6

4

1/4

6.4

14.3

8.7

1350

34.8

5300

75

0.19

SY3-8

5

5/16

7.9

17.5

8.4

1300

33.6

5200

100

0.26

SY3-10

6

3/8

9.5

19.0

78

1200

31.2

4840

100

0.28

SY3-13

8

1/2

12.7

23.8

7.0

1080

28.0

4340

125

0.40

SY3-16

10

5/8

15.9

27.0

6.1

945

24.4

3780

140

0.55

SY3-19

12

3/4

19.0

31.8

5.2

800

20.8

3220

150

0.69

SY3-25

16

1

25.4

38.0

3.9

600

15.5

2420

205

0.82

SY3-32

20

1-1/4

31.8

44.4

2.6

400

10.4

1610

250

1.00

SAE 100R3

SAE 100R3 Medium Pressure Hydraulic Hose is ideal for medium pressure fuel and oil lines as well as return and suction hoses for hydraulic systems. Two layers of braided fabric protect the inner hose from damage to the outer cover. Nitrile hose has excellent oil resistance and will not react with petroleum-based or water-based hydraulic fluids in the -40°C to 100°C range.
