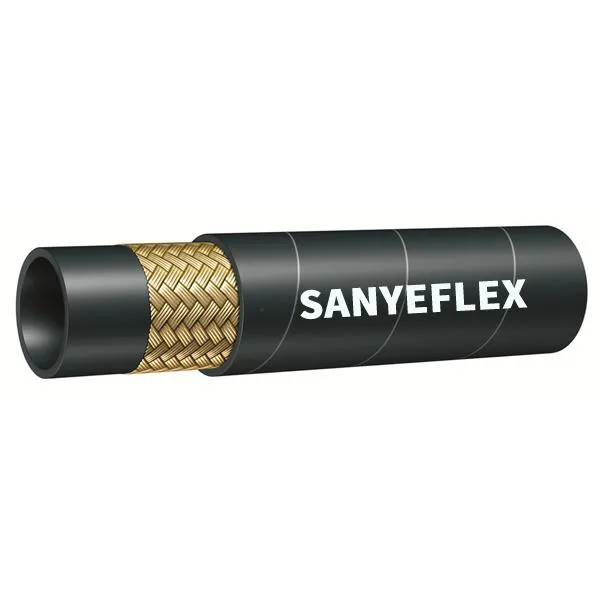

Steel Wire Braided Hydraulic Hose(Wrapped Cover/Smooth Cover)

SAE 100R5

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: one high tensile steel were braid

COVER: impregnated textile braid (1T/B)

TEMPERATURE RANGE: -40℃ to +100℃

Specification

Specification

HOSE ID

Hose OD

Working Pressure

Burst Pressure

Minimum Bend Radius

Weight

InchmmmmMPaPsiMPaPsimmkg/m
3/164.813.220.7300082.712000760.24
1/46.414.820.7300082.712000860.29
5/167.917.115.5225062.190001020.36
13/3210.319.513.8200055.280001170.48
1/212.723.412.1175048.370001400.55
5/815.927.410.3150041.460001650.65
7/822.231.45.580022.132001870.69
1-1/828.638.14.362517.225002290.84
1-3/835.044.43.450013.820002671.03
1-13/1646.056.42.43509.614003371.26
2-3/860.573.02.43509.614006102.00
375.590.51.42005.68008403.00

SAE 100R5 Steel Wire Braided Hydraulic Hose

SAE 100R5 is a type of hydraulic hose specification defined by the Society of Automotive Engineers (SAE). It is a single wire braid reinforced hose with a textile cover and is designed for use in medium pressure hydraulic systems, air, and oil applications.

The SAE 100R5 specification outlines the construction, performance, and test requirements for this type of hose. The hose is composed of an inner tube made of seamless, oil-resistant synthetic rubber, a single wire braid reinforcement, and a textile cover.

The working pressure of SAE 100R5 hoses typically ranges from 500 to 1,500 psi, depending on the size and type of hose. These hoses are commonly used in medium-pressure hydraulic applications such as hydraulic oil lines, power steering lines, and other applications in transportation and industrial equipment.

It is suitable for shocking medium pressure hydraulic petroleum-based oil, lubricating oil, superheated lubricating oil and water and gas piping, such as air brake, power steering, fuel filter, turbocharger and heavy commercial cylinder cars. It consists of three parts: tube, reinforcement and cover plate. The tube is made of oil and heat resistant black synthetic rubber. The reinforcement is made of a single layer of high-strength braided steel wire, giving the hose a strong structure. The outer cover is made of braided fibers, making the hose resistant to weather and ozone.

Features

Construction: SAE 100R5 hoses are constructed with a single wire braid reinforcement and a textile braid cover. The inner tube is made of oil-resistant synthetic rubber.

Temperature Range: SAE 100R5 hoses are designed to operate in a temperature range of -40°F to 212°F (-40°C to 100°C).

Application: These hoses are commonly used in medium-pressure hydraulic systems, air brake lines, power steering lines, and other applications in the transportation industry.

Compatibility: SAE 100R5 hoses are compatible with a variety of fluids, including hydraulic oils, gasoline, diesel fuel, air, water, and some refrigerants.

Sizes: SAE 100R5 hoses are available in a range of sizes, from 3/16 inch to 1-13/16 inch inside diameter.

Standards: These hoses are manufactured to meet or exceed the performance requirements of SAE 100R5 specifications, which include pressure, temperature, and compatibility standards.

Versatility: SAE 100R5 hoses are versatile and can be used in a variety of applications, including in the agricultural, construction, and industrial sectors.

SAE 100R5 (Wrapped Cover / Smooth Cover)
