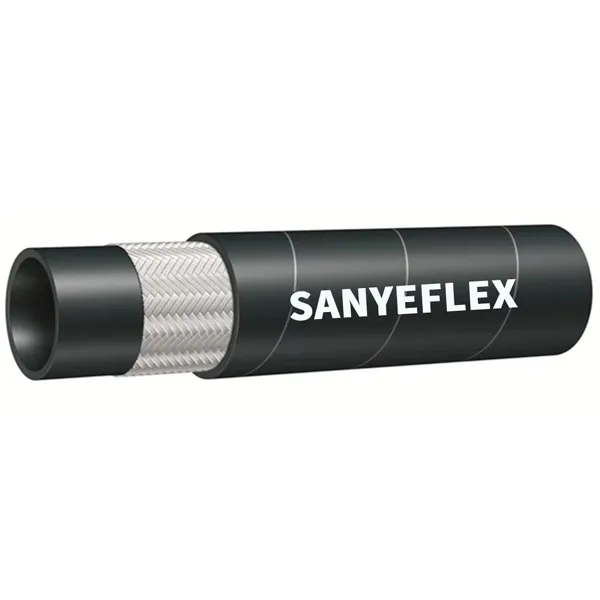

Firber Braided Hydraulic Hose (Wrapped Cover/ Smooth Cover)

SAE 100R6 (Wrapped Cover / Smooth Cover)

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: one high tensile fibre braid

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to +100℃

Specification

Specification

TYPE

DASH

I.D.

O.D.

W.P.

B.P.

Min B.R.

Weight



Inch

mm

mm

MPa

Psi

MPa

Psi

mm

kg/m

SY6-5

3

3/16

4.8

11.1

3.4

500

13.8

2000

50

0.11

SY6-6

4

1/4

6.4

12.7

2.8

400

11.0

1600

65

0.15

SY6-8

5

5/16

7.9

14.3

2.8

400

11.0

1600

75

0.16

SY6-10

6

3/8

9.5

15.9

2.8

400

11.0

1600

75

0.18

SY6-13

8

1/2

12.7

19.8

2.8

400

11.0

1600

100

0.26

SY6-16

10

5/8

15.9

23.0

2.4

350

9.7

1400

125

0.29

SY6-19

12

3/4

19.0

26.6

2.1

300

8.3

1200

150

0.40

SAE 100R6

SAE 100 R6 textile-reinforced hydraulic hose is suitable for the transportation of petroleum- or water-based hydraulic fluids, mainly in low-pressure conditions. It consists of three parts: the tube, the reinforcement and the outer layer. The tube is made of high quality black synthetic rubber, which is resistant to oil, abrasion and corrosion. As such, the hose is widely used to transport petroleum or water-based hydraulic fluids. The reinforcement layer is made from a layer of braided textile, making it widely used for low-pressure applications. The outer layer is made of high-quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cuts, aging and sunlight. As a result, the hose has a longer service life.

SAE 100R6  (Wrapped Cover / Smooth Cover)
